A Texture 3D frontend to SharpDX.Direct3D11.Texture3D. More...

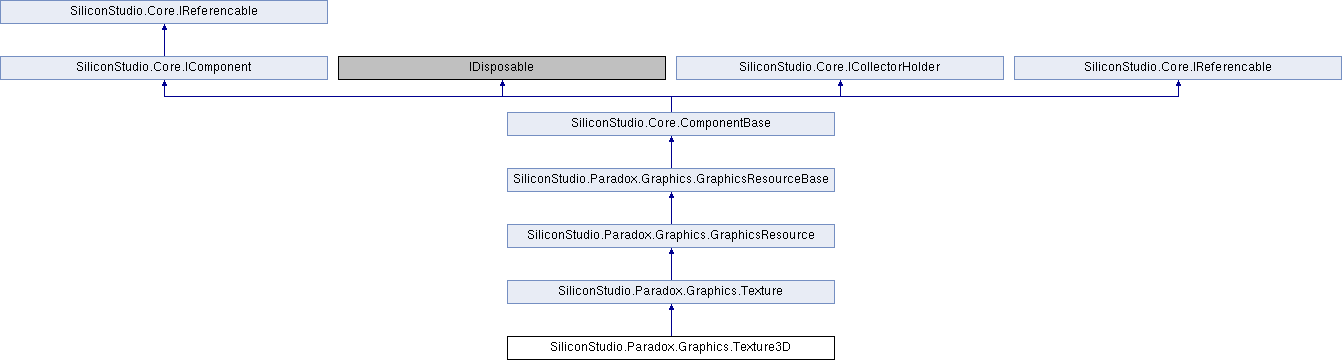

Inheritance diagram for SiliconStudio.Paradox.Graphics.Texture3D:

Public Member Functions
override Texture	Clone ()
	Makes a copy of this texture. More...

override Texture	ToStaging ()
	Return an equivalent staging texture CPU read-writable from this instance. More...

Public Member Functions inherited from SiliconStudio.Paradox.Graphics.Texture
T	ToTexture< T > (ViewType viewType, int arrayOrDepthSlice, int mipMapSlice)
	Gets a view on this texture for a particular ViewType, array index (or zIndex for Texture3D), and mipmap index. More...

abstract Texture	ToTexture (ViewType viewType, int arraySlice, int mipMapSlice)
	Gets a view on this texture for a particular ViewType, array index (or zIndex for Texture3D), and mipmap index. More...

RenderTarget	ToRenderTarget ()

MipMapDescription	GetMipMapDescription (int mipmap)
	Gets the mipmap description of this instance for the specified mipmap level. More...

int	GetSubResourceIndex (int arraySlice, int mipSlice)
	Gets the absolute sub-resource index from the array and mip slice. More...

int	CalculateWidth< TData > (int mipLevel=0)
	Calculates the expected width of a texture using a specified type. More...

int	CalculatePixelDataCount< TData > (int mipLevel=0)
	Calculates the number of pixel data this texture is requiring for a particular mip level. More...

T	Clone< T > ()
	Makes a copy of this texture with type casting. More...

TData[]	GetData< TData > (int arraySlice=0, int mipSlice=0)
	Gets the content of this texture to an array of data. More...

bool	GetData< TData > (TData[] toData, int arraySlice=0, int mipSlice=0, bool doNotWait=false)
	Copies the content of this texture to an array of data. More...

unsafe bool	GetData< TData > (Texture stagingTexture, TData[] toData, int arraySlice=0, int mipSlice=0, bool doNotWait=false)
	Copies the content of this texture from GPU memory to an array of data on CPU memory using a specific staging resource. More...

void	SetData< TData > (TData[] fromData, int arraySlice=0, int mipSlice=0, ResourceRegion?region=null)
	Copies the content an array of data on CPU memory to this texture into GPU memory. More...

void	SetData (DataPointer fromData, int arraySlice=0, int mipSlice=0, ResourceRegion?region=null)
	Copies the content an data on CPU memory to this texture into GPU memory using the specified GraphicsDevice (The graphics device could be deffered). More...

unsafe void	SetData< TData > (GraphicsDevice device, TData[] fromData, int arraySlice=0, int mipSlice=0, ResourceRegion?region=null)
	Copies the content an array of data on CPU memory to this texture into GPU memory using the specified GraphicsDevice (The graphics device could be deffered). More...

unsafe bool	GetData (Texture stagingTexture, DataPointer toData, int arraySlice=0, int mipSlice=0, bool doNotWait=false)
	Copies the content of this texture from GPU memory to a pointer on CPU memory using a specific staging resource. More...

unsafe void	SetData (GraphicsDevice device, DataPointer fromData, int arraySlice=0, int mipSlice=0, ResourceRegion?region=null)
	Copies the content an data on CPU memory to this texture into GPU memory. More...

void	Save (Stream stream, ImageFileType fileType)
	Saves this texture to a stream with a specified format. More...

Image	GetDataAsImage ()
	Gets the GPU content of this texture as an Image on the CPU. More...

Image	GetDataAsImage (Texture stagingTexture)
	Gets the GPU content of this texture to an Image on the CPU. More...

void	Save (Stream stream, Texture stagingTexture, ImageFileType fileType)
	Saves this texture to a stream with a specified format. More...

Public Member Functions inherited from SiliconStudio.Core.ComponentBase
void	Dispose ()

override string	ToString ()

Static Public Member Functions
static Texture3D	New (GraphicsDevice device, TextureDescription texture)
	Creates a new texture from a Direct3D11.Texture3D. More...

static Texture3D	New (GraphicsDevice device, int width, int height, int depth, PixelFormat format, TextureFlags textureFlags=TextureFlags.ShaderResource, GraphicsResourceUsage usage=GraphicsResourceUsage.Default)
	Creates a new Texture3D with a single mipmap. More...

static Texture3D	New (GraphicsDevice device, int width, int height, int depth, MipMapCount mipCount, PixelFormat format, TextureFlags textureFlags=TextureFlags.ShaderResource, GraphicsResourceUsage usage=GraphicsResourceUsage.Default)
	Creates a new Texture3D. More...

static unsafe Texture3D	New< T > (GraphicsDevice device, int width, int height, int depth, PixelFormat format, T[] textureData, TextureFlags textureFlags=TextureFlags.ShaderResource, GraphicsResourceUsage usage=GraphicsResourceUsage.Immutable)
	Creates a new Texture3D with texture data for the firs map. More...

static Texture3D	New (GraphicsDevice device, int width, int height, int depth, MipMapCount mipCount, PixelFormat format, DataBox[] textureData, TextureFlags textureFlags=TextureFlags.ShaderResource, GraphicsResourceUsage usage=GraphicsResourceUsage.Default)
	Creates a new Texture3D. More...

static new Texture3D	New (GraphicsDevice device, Image image, TextureFlags textureFlags=TextureFlags.ShaderResource, GraphicsResourceUsage usage=GraphicsResourceUsage.Immutable)
	Creates a new Texture3D directly from an Image. More...

static new Texture3D	Load (GraphicsDevice device, Stream stream, TextureFlags textureFlags=TextureFlags.ShaderResource, GraphicsResourceUsage usage=GraphicsResourceUsage.Immutable)
	Loads a 3D texture from a stream. More...

Static Public Member Functions inherited from SiliconStudio.Paradox.Graphics.Texture
static int	CalculateMipSize (int width, int mipLevel)

static Texture	Load (GraphicsDevice device, Stream stream, TextureFlags textureFlags=TextureFlags.ShaderResource, GraphicsResourceUsage usage=GraphicsResourceUsage.Immutable)
	Loads a texture from a stream. More...

static Texture	New (GraphicsDevice device, Image image, TextureFlags textureFlags=TextureFlags.ShaderResource, GraphicsResourceUsage usage=GraphicsResourceUsage.Immutable)
	Loads a texture from a stream. More...

static Texture	New (GraphicsDevice graphicsDevice, TextureDescription description)
	Creates a new texture with the specified generic texture description. More...

Static Protected Member Functions
static TextureDescription	NewDescription (int width, int height, int depth, PixelFormat format, TextureFlags flags, int mipCount, GraphicsResourceUsage usage)

Static Protected Member Functions inherited from SiliconStudio.Paradox.Graphics.Texture
static DataBox	GetDataBox< T > (PixelFormat format, int width, int height, int depth, T[] textureData, IntPtr fixedPointer)

Additional Inherited Members
Public Attributes inherited from SiliconStudio.Paradox.Graphics.Texture
readonly TextureDescription	Description
	Common description for the original texture. More...

int	Width
	The width of this texture view. More...

int	Height
	The height of this texture view. More...

readonly int	Depth
	The depth of this texture view. More...

readonly PixelFormat	ViewFormat
	The format of this texture view. More...

readonly ViewType	ViewType
	The format of this texture view. More...

readonly int	MipLevel
	The miplevel index of this texture view. More...

readonly int	ArraySlice
	The array index of this texture view. More...

readonly bool	IsBlockCompressed
	Gets a boolean indicating whether this Texture is a using a block compress format (BC1, BC2, BC3, BC4, BC5, BC6H, BC7). More...

Public Attributes inherited from SiliconStudio.Paradox.Graphics.GraphicsResourceBase
Action< GraphicsResourceBase >	Reload

Public Attributes inherited from SiliconStudio.Core.ComponentBase
PropertyContainer	Tags
	Gets the attached properties to this component. More...

Protected Member Functions inherited from SiliconStudio.Paradox.Graphics.Texture
	Texture ()

	Texture (GraphicsDevice device, Texture parentTexture, ViewType viewType, int viewArraySlice, int viewMipLevel, PixelFormat viewFormat=PixelFormat.None)

	Texture (GraphicsDevice device, TextureDescription description, ViewType viewType, int viewArraySlice, int viewMipLevel, PixelFormat viewFormat=PixelFormat.None)

virtual TextureDescription	GetCloneableDescription ()

override void	Destroy ()
	Disposes of object resources. More...

Protected Member Functions inherited from SiliconStudio.Paradox.Graphics.GraphicsResource
	GraphicsResource ()

	GraphicsResource (GraphicsDevice device)

	GraphicsResource (GraphicsDevice device, string name)

Protected Member Functions inherited from SiliconStudio.Paradox.Graphics.GraphicsResourceBase
	GraphicsResourceBase ()
	Initializes a new instance of the GraphicsResourceBase class. More...

	GraphicsResourceBase (GraphicsDevice device)
	Initializes a new instance of the GraphicsResourceBase class. More...

	GraphicsResourceBase (GraphicsDevice device, string name)
	Initializes a new instance of the GraphicsResourceBase class. More...

Protected Member Functions inherited from SiliconStudio.Core.ComponentBase
	ComponentBase ()
	Initializes a new instance of the ComponentBase class. More...

	ComponentBase (string name)
	Initializes a new instance of the ComponentBase class. More...

virtual void	OnNameChanged ()
	Called when Name property was changed. More...

Properties inherited from SiliconStudio.Paradox.Graphics.GraphicsResourceBase
GraphicsDevice	GraphicsDevice `[get, set]`
	Gets the graphics device attached to this instance. More...

Properties inherited from SiliconStudio.Core.ComponentBase
long	Id `[get, set]`

string	Name `[get, set]`
	Gets or sets the name of this component. More...

bool	IsDisposed `[get, set]`
	Has the component been disposed or not yet. More...

Properties inherited from SiliconStudio.Core.IComponent
long	Id `[get]`
	Gets the id of this component. More...

string	Name `[get]`
	Gets the name of this component. More...

Properties inherited from SiliconStudio.Core.IReferencable
int	ReferenceCount `[get]`
	Gets the reference count of this instance. More...

Properties inherited from SiliconStudio.Core.ICollectorHolder
ObjectCollector	Collector `[get]`
	Gets the collector. More...

Detailed Description

A Texture 3D frontend to SharpDX.Direct3D11.Texture3D.

Definition at line 37 of file Texture3D.cs.

Member Function Documentation

override Texture SiliconStudio.Paradox.Graphics.Texture3D.Clone ( )

virtual

Makes a copy of this texture.

This method doesn't copy the content of the texture.

Returns: A copy of this texture.

Implements SiliconStudio.Paradox.Graphics.Texture.

Definition at line 48 of file Texture3D.cs.

static new Texture3D SiliconStudio.Paradox.Graphics.Texture3D.Load	(	GraphicsDevice	device,
		Stream	stream,
		TextureFlags	textureFlags = `TextureFlags.ShaderResource`,
		GraphicsResourceUsage	usage = `GraphicsResourceUsage.Immutable`
	)

static

Loads a 3D texture from a stream.

Parameters

device	The GraphicsDevice.
stream	The stream to load the texture from.
textureFlags	True to load the texture with unordered access enabled. Default is false.
usage	Usage of the resource. Default is GraphicsResourceUsage.Immutable

Exceptions

ArgumentException If the texture is not of type 3D

Returns: A texture

Definition at line 180 of file Texture3D.cs.

static Texture3D SiliconStudio.Paradox.Graphics.Texture3D.New	(	GraphicsDevice	device,
		TextureDescription	texture
	)

static

Creates a new texture from a Direct3D11.Texture3D.

Parameters

device	The GraphicsDevice.
texture	The native texture Direct3D11.Texture3D.

Returns: A new instance of Texture3D class.

<unmanaged-short>ID3D11Device::CreateTexture3D</unmanaged-short>

Definition at line 71 of file Texture3D.cs.

static Texture3D SiliconStudio.Paradox.Graphics.Texture3D.New	(	GraphicsDevice	device,
		int	width,
		int	height,
		int	depth,
		PixelFormat	format,
		TextureFlags	textureFlags = `TextureFlags.ShaderResource`,
		GraphicsResourceUsage	usage = `GraphicsResourceUsage.Default`
	)

static

Creates a new Texture3D with a single mipmap.

Parameters

device	The GraphicsDevice.
width	The width.
height	The height.
depth	The depth.
format	Describes the format to use.
usage	The usage.
textureFlags	true if the texture needs to support unordered read write.

Returns: A new instance of Texture3D class.

Definition at line 89 of file Texture3D.cs.

static Texture3D SiliconStudio.Paradox.Graphics.Texture3D.New	(	GraphicsDevice	device,
		int	width,
		int	height,
		int	depth,
		MipMapCount	mipCount,
		PixelFormat	format,
		TextureFlags	textureFlags = `TextureFlags.ShaderResource`,
		GraphicsResourceUsage	usage = `GraphicsResourceUsage.Default`
	)

static

Creates a new Texture3D.

Parameters

device	The GraphicsDevice.
width	The width.
height	The height.
depth	The depth.
mipCount	Number of mipmaps, set to true to have all mipmaps, set to an int >=1 for a particular mipmap count.
format	Describes the format to use.
usage	The usage.
textureFlags	true if the texture needs to support unordered read write.

Returns: A new instance of Texture3D class.

Definition at line 108 of file Texture3D.cs.

static Texture3D SiliconStudio.Paradox.Graphics.Texture3D.New	(	GraphicsDevice	device,
		int	width,
		int	height,
		int	depth,
		MipMapCount	mipCount,
		PixelFormat	format,
		DataBox[]	textureData,
		TextureFlags	textureFlags = `TextureFlags.ShaderResource`,
		GraphicsResourceUsage	usage = `GraphicsResourceUsage.Default`
	)

static

Creates a new Texture3D.

Parameters

device	The GraphicsDevice.
width	The width.
height	The height.
depth	The depth.
mipCount	Number of mipmaps, set to true to have all mipmaps, set to an int >=1 for a particular mipmap count.
format	Describes the format to use.
usage	The usage.
textureFlags	true if the texture needs to support unordered read write.

Returns: A new instance of Texture3D class.

Definition at line 148 of file Texture3D.cs.

static new Texture3D SiliconStudio.Paradox.Graphics.Texture3D.New	(	GraphicsDevice	device,
		Image	image,
		TextureFlags	textureFlags = `TextureFlags.ShaderResource`,
		GraphicsResourceUsage	usage = `GraphicsResourceUsage.Immutable`
	)

static

Creates a new Texture3D directly from an Image.

Parameters

device	The GraphicsDevice.
image	An image in CPU memory.
textureFlags	true if the texture needs to support unordered read write.
usage	The usage.

Returns: A new instance of Texture3D class.

Definition at line 162 of file Texture3D.cs.

References SiliconStudio.Paradox.Graphics.Image.Description, SiliconStudio.Paradox.Graphics.ImageDescription.Dimension, and SiliconStudio.Paradox.Graphics.Image.ToDataBox().

static unsafe Texture3D SiliconStudio.Paradox.Graphics.Texture3D.New< T >	(	GraphicsDevice	device,
		int	width,
		int	height,
		int	depth,
		PixelFormat	format,
		T[]	textureData,
		TextureFlags	textureFlags = `TextureFlags.ShaderResource`,
		GraphicsResourceUsage	usage = `GraphicsResourceUsage.Immutable`
	)

static

Creates a new Texture3D with texture data for the firs map.

Template Parameters

T	Type of the data to upload to the texture

Parameters

device	The GraphicsDevice.
width	The width.
height	The height.
depth	The depth.
format	Describes the format to use.
usage	The usage.
textureData	The texture data, width * height * depth datas
textureFlags	true if the texture needs to support unordered read write.

Returns: A new instance of Texture3D class.

The first dimension of mipMapTextures describes the number of is an array ot Texture3D Array

Type Constraints

T

:

struct

Definition at line 129 of file Texture3D.cs.

References DirectX.format.

static TextureDescription SiliconStudio.Paradox.Graphics.Texture3D.NewDescription	(	int	width,
		int	height,
		int	depth,
		PixelFormat	format,
		TextureFlags	flags,
		int	mipCount,
		GraphicsResourceUsage	usage
	)

staticprotected

Definition at line 188 of file Texture3D.cs.

References DirectX.flags, and DirectX.format.

override Texture SiliconStudio.Paradox.Graphics.Texture3D.ToStaging ( )

virtual

Return an equivalent staging texture CPU read-writable from this instance.

Returns

Implements SiliconStudio.Paradox.Graphics.Texture.

Definition at line 57 of file Texture3D.cs.

The documentation for this class was generated from the following file:

D:/Projects/Bitbucket Hosting/DoxygenFilesAndSources/Paradox v1.0.0 beta06/sources/engine/SiliconStudio.Paradox.Graphics/Texture3D.cs

Public Member Functions

Static Public Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
