Add a Model to an Entity, that will be used during rendering. More...

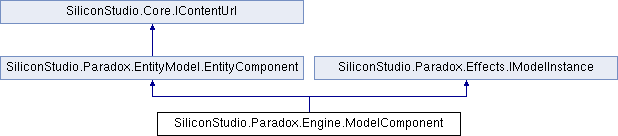

Inheritance diagram for SiliconStudio.Paradox.Engine.ModelComponent:

Public Member Functions
	ModelComponent ()
	Initializes a new instance of the ModelComponent class. More...

	ModelComponent (Model model)
	Initializes a new instance of the ModelComponent class. More...

Public Member Functions inherited from SiliconStudio.Paradox.EntityModel.EntityComponent
	EntityComponent ()
	Initializes a new instance of the EntityComponent class. More...

Static Public Attributes
static PropertyKey < ModelComponent >	Key = new PropertyKey<ModelComponent>("Key", typeof(ModelComponent))

Properties
Model	Model `[get, set]`
	Gets or sets the model. More...

ModelViewHierarchyUpdater	ModelViewHierarchy `[get, set]`

bool	Enabled `[get, set]`
	Gets or sets a value indicating whether rendering is enabled. More...

float	DrawOrder `[get, set]`
	Gets or sets the draw order (from lowest to highest). More...

ParameterCollection	Parameters `[get, set]`
	Gets the parameters used to render this mesh. More...

override PropertyKey	DefaultKey `[get]`

Properties inherited from SiliconStudio.Paradox.EntityModel.EntityComponent
Entity	Entity `[get, set]`
	Gets or sets the owner entity. More...

Entity	EnsureEntity `[get]`
	Gets the entity and throws an exception if the entity is null. More...

virtual PropertyKey	DefaultKey `[get]`
	The default key this component is associated to. More...

Properties inherited from SiliconStudio.Core.IContentUrl
string	Url `[get, set]`
	The URL of this asset. More...

Properties inherited from SiliconStudio.Paradox.Effects.IModelInstance
Model	Model `[get]`
	Gets the model. More...

ParameterCollection	Parameters `[get]`
	Gets the parameters. More...

float	DrawOrder `[get]`
	Gets the draw order. More...

Additional Inherited Members
Static Public Member Functions inherited from SiliconStudio.Paradox.EntityModel.EntityComponent
static PropertyKey	GetDefaultKey< T > ()
	Gets the default key for the specified entity component type. More...

Detailed Description

Add a Model to an Entity, that will be used during rendering.

Definition at line 15 of file ModelComponent.cs.

Constructor & Destructor Documentation

SiliconStudio.Paradox.Engine.ModelComponent.ModelComponent ( )

Initializes a new instance of the ModelComponent class.

Definition at line 24 of file ModelComponent.cs.

SiliconStudio.Paradox.Engine.ModelComponent.ModelComponent ( Model model )

Initializes a new instance of the ModelComponent class.

Parameters

model The model.

Definition at line 32 of file ModelComponent.cs.

Member Data Documentation

PropertyKey<ModelComponent> SiliconStudio.Paradox.Engine.ModelComponent.Key = new PropertyKey<ModelComponent>("Key", typeof(ModelComponent))

static

Definition at line 17 of file ModelComponent.cs.

Property Documentation

override PropertyKey SiliconStudio.Paradox.Engine.ModelComponent.DefaultKey

get

Definition at line 109 of file ModelComponent.cs.

float SiliconStudio.Paradox.Engine.ModelComponent.DrawOrder

getset

Gets or sets the draw order (from lowest to highest).

The draw order.

Definition at line 83 of file ModelComponent.cs.

bool SiliconStudio.Paradox.Engine.ModelComponent.Enabled

getset

Gets or sets a value indicating whether rendering is enabled.

true if rendering is enabled; otherwise, false.

Definition at line 74 of file ModelComponent.cs.

Model SiliconStudio.Paradox.Engine.ModelComponent.Model

getset

Gets or sets the model.

The model.

Definition at line 48 of file ModelComponent.cs.

ModelViewHierarchyUpdater SiliconStudio.Paradox.Engine.ModelComponent.ModelViewHierarchy

getset

Definition at line 62 of file ModelComponent.cs.

ParameterCollection SiliconStudio.Paradox.Engine.ModelComponent.Parameters

getset

Gets the parameters used to render this mesh.

The parameters.

Definition at line 90 of file ModelComponent.cs.

The documentation for this class was generated from the following file:

D:/Projects/Bitbucket Hosting/DoxygenFilesAndSources/Paradox v1.0.0 beta06/sources/engine/SiliconStudio.Paradox.Engine/Engine/ModelComponent.cs
