This class is an implementation of the ITransactionalActionStack interface. More...

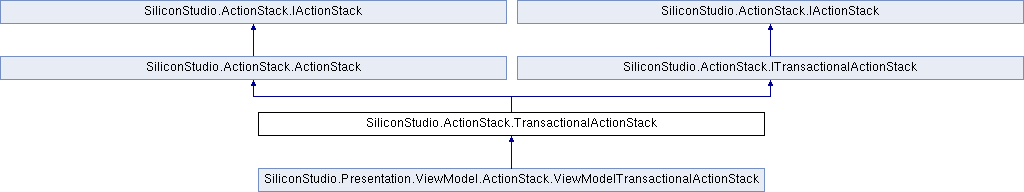

Inheritance diagram for SiliconStudio.ActionStack.TransactionalActionStack:

Public Member Functions

TransactionalActionStack (int capacity)

Initializes a new instance of the TransactionalActionStack class with the given capacity. More...

TransactionalActionStack (int capacity, IEnumerable< IActionItem > initialActionsItems)

Initializes a new instance of the TransactionalActionStack class with the given capacity and existing action items. More...

IDisposable BeginEndTransaction (string name)

Creates a BeginTransaction-EndTransaction subscription. Use it with a using statement to ensure balanced state integrity.

Parameters

name	The name given to the transaction at the end.

Returns: An EndTransaction subscription.

See also: BeginTransaction, EndTransaction(string)

More...

IDisposable BeginEndTransaction (Func< string > getName)

Creates a BeginTransaction-EndTransaction subscription. Use it with a using statement to ensure balanced state integrity.

Parameters

getName A delegate that late-evaluate the name given to the transaction at the end.

Returns: Returns a end transaction subscription.

See also: BeginTransaction, EndTransaction(string)

More...

IDisposable BeginCancelTransaction ()

Creates a BeginTransaction-CancelTransaction transaction subscription. Use it with a using statement to ensure balanced state integrity.

Returns: Returns a cancel transaction subscription.

See also: BeginTransaction, CancelTransaction

More...

IDisposable BeginDiscardTransaction ()

Creates a BeginTransaction-DiscardTransaction transaction subscription. Use it with a using statement to ensure balanced state integrity.

Returns: Returns a discard transaction subscription.

See also: BeginTransaction, DiscardTransaction

More...

virtual void BeginTransaction ()

Begins a transaction. IActionItem added after a call to BeginTransaction are stored in a temporary transaction stack, until a call to EndTransaction(string), CancelTransaction, or DiscardTransaction is done. More...

void EndTransaction (string name)

Ends a transaction started with BeginTransaction.

Parameters

displayName

Once the transaction is ended, an aggregate action is created with all action items that were added during the transaction. This aggregate is added to the action stack. More...

virtual void EndTransaction (string name, Func< IReadOnlyCollection< IActionItem >, IActionItem > aggregateActionItems)

Ends a transaction started with BeginTransaction.

Parameters

displayName
aggregateActionItems	A function that will aggregate an enumeration of action items into a single action item.

Once the transaction is ended, an aggregate action is created with all action items that were added during the transaction. This aggregate is added to the action stack. More...

virtual void CancelTransaction ()

Cancels a transaction started with BeginTransaction. Every action from the cancelled transaction will be undone. This method will undo every action item of the transaction and then discard them. More...

virtual void DiscardTransaction ()

Discard a transaction started with BeginTransaction. This method will ends the transaction and discard every action item it contains. More...

IReadOnlyCollection< IActionItem > GetCurrentTransactions ()

Gets the action items in the current transaction. More...

override void Add (IActionItem item)

Adds an action item to the stack. Discards any action item that is currently undone.

Parameters

item	The action item to add to the stack.

More...

Public Member Functions inherited from SiliconStudio.ActionStack.ActionStack

ActionStack (int capacity)

Initializes a new instance of the ActionStack class with the given capacity. More...

ActionStack (int capacity, IEnumerable< IActionItem > initialActionsItems)

Initializes a new instance of the ActionStack class with the given capacity and existing action items. More...

void AddRange (IEnumerable< IActionItem > items)

Adds multiple action items on the stack. Discards any action item that is currently undone.

Parameters

items The action items to add on the stack.

More...

void Clear ()

Clears the action stack. More...

virtual SavePoint CreateSavePoint (bool markActionsAsSaved)

Creates a save point at the current index of the action stack.

Parameters

markActionsAsSaved Indicate whether to set the IActionItem.IsSaved of all preceding action items to true.

Returns: A SavePoint object corresponding to the created save point.

More...

virtual bool Undo ()

Undoes the last action item that is currently done.

Returns: True if an action could be undone, False otherwise.

More...

virtual bool Redo ()

Redoes the first action item that is currently undone.

Returns: True if an action could be redone, False otherwise.

More...

Protected Attributes
readonly Stack< List < IActionItem > >	TransactionStack = new Stack<List<IActionItem>>()
	The stack of transactions currently in progress. More...

Additional Inherited Members
Protected Member Functions inherited from SiliconStudio.ActionStack.ActionStack
virtual void	OnActionItemsDiscarded (DiscardedActionItemsEventArgs< IActionItem > e)
	Invoked whenever action items are discarded from the stack. More...

virtual void	OnActionItemsAdded (ActionItemsEventArgs< IActionItem > e)
	Invoked whenever action items are added to the stack. More...

virtual void	OnActionItemsCleared ()
	Invoked whenever the action stack is cleared. More...

virtual void	OnUndone (ActionItemsEventArgs< IActionItem > e)
	Invoked Raised when an action item is undone. More...

virtual void	OnRedone (ActionItemsEventArgs< IActionItem > e)
	Invoked Raised when an action item is redone. More...

Properties inherited from SiliconStudio.ActionStack.ActionStack
IEnumerable< IActionItem >	ActionItems `[get]`

int	Capacity `[get]`
	Gets the capacity of this action stack. More...

bool	CanUndo `[get]`
	Gets whether an undo operation can be executed. More...

bool	CanRedo `[get]`
	Gets whether an redo operation can be executed. More...

int	CurrentIndex `[get, set]`
	Gets the index at which the next action item will be added. More...

bool	UndoRedoInProgress `[get, set]`
	Gets whether an undo/redo operation is currently in progress. More...

Properties inherited from SiliconStudio.ActionStack.IActionStack
IEnumerable< IActionItem >	ActionItems `[get]`
	Gets the action items currently stored in the action stack, including undone items that have not been disbranched. More...

Events inherited from SiliconStudio.ActionStack.ActionStack
EventHandler < ActionItemsEventArgs < IActionItem > >	ActionItemsAdded
	Raised whenever action items are added to the stack. More...

EventHandler	ActionItemsCleared
	Raised whenever the action stack is cleared. More...

EventHandler < DiscardedActionItemsEventArgs < IActionItem > >	ActionItemsDiscarded
	Raised whenever action items are discarded from the stack. More...

EventHandler < ActionItemsEventArgs < IActionItem > >	Undone
	Raised when an action item is undone. More...

EventHandler < ActionItemsEventArgs < IActionItem > >	Redone
	Raised when an action item is redone. More...

Events inherited from SiliconStudio.ActionStack.IActionStack
EventHandler < ActionItemsEventArgs < IActionItem > >	ActionItemsAdded
	Raised whenever action items are added to the stack. More...

EventHandler	ActionItemsCleared
	Raised whenever the action stack is cleared. More...

EventHandler < DiscardedActionItemsEventArgs < IActionItem > >	ActionItemsDiscarded
	Raised whenever action items are discarded from the stack. More...

EventHandler < ActionItemsEventArgs < IActionItem > >	Undone
	Raised when an action item is undone. More...

EventHandler < ActionItemsEventArgs < IActionItem > >	Redone
	Raised when an action item is redone. More...

Detailed Description

This class is an implementation of the ITransactionalActionStack interface.

A transactional action stack is an action stack that generates IAggregateActionItem from the action items that are added after a transaction is started and before it is finished. A transaction can also be cancelled (undone) or discarded instead of creating an aggregate action item. Multiple transactions can be created at the same time, each transaction that ends will become a single item of the parent transaction in progress.

Definition at line 19 of file TransactionalActionStack.cs.

Constructor & Destructor Documentation

SiliconStudio.ActionStack.TransactionalActionStack.TransactionalActionStack ( int capacity )

Initializes a new instance of the TransactionalActionStack class with the given capacity.

Parameters

capacity The stack capacity. If negative, the action stack will have an unlimited capacity.

Definition at line 30 of file TransactionalActionStack.cs.

SiliconStudio.ActionStack.TransactionalActionStack.TransactionalActionStack	(	int	capacity,
		IEnumerable< IActionItem >	initialActionsItems
	)

Initializes a new instance of the TransactionalActionStack class with the given capacity and existing action items.

Parameters

capacity	The stack capacity. If negative, the action stack will have an unlimited capacity.
initialActionsItems	The action items to add to the stack.

Definition at line 40 of file TransactionalActionStack.cs.

Member Function Documentation

override void SiliconStudio.ActionStack.TransactionalActionStack.Add ( IActionItem item )

virtual

Adds an action item to the stack. Discards any action item that is currently undone.

Parameters

item	The action item to add to the stack.

Reimplemented from SiliconStudio.ActionStack.ActionStack.

Reimplemented in SiliconStudio.Presentation.ViewModel.ActionStack.ViewModelTransactionalActionStack.

Definition at line 138 of file TransactionalActionStack.cs.

References SiliconStudio.ActionStack.UndoRedoInProgress.

IDisposable SiliconStudio.ActionStack.TransactionalActionStack.BeginCancelTransaction ( )

Creates a BeginTransaction-CancelTransaction transaction subscription. Use it with a using statement to ensure balanced state integrity.

Returns: Returns a cancel transaction subscription.

See also: BeginTransaction, CancelTransaction

Implements SiliconStudio.ActionStack.ITransactionalActionStack.

Definition at line 73 of file TransactionalActionStack.cs.

IDisposable SiliconStudio.ActionStack.TransactionalActionStack.BeginDiscardTransaction ( )

Creates a BeginTransaction-DiscardTransaction transaction subscription. Use it with a using statement to ensure balanced state integrity.

Returns: Returns a discard transaction subscription.

See also: BeginTransaction, DiscardTransaction

Implements SiliconStudio.ActionStack.ITransactionalActionStack.

Definition at line 80 of file TransactionalActionStack.cs.

IDisposable SiliconStudio.ActionStack.TransactionalActionStack.BeginEndTransaction ( string name )

Creates a BeginTransaction-EndTransaction subscription. Use it with a using statement to ensure balanced state integrity.

Parameters

name	The name given to the transaction at the end.

Returns: An EndTransaction subscription.

See also: BeginTransaction, EndTransaction(string)

Implements SiliconStudio.ActionStack.ITransactionalActionStack.

Definition at line 46 of file TransactionalActionStack.cs.

IDisposable SiliconStudio.ActionStack.TransactionalActionStack.BeginEndTransaction ( Func< string > getName )

Creates a BeginTransaction-EndTransaction subscription. Use it with a using statement to ensure balanced state integrity.

Parameters

getName A delegate that late-evaluate the name given to the transaction at the end.

Returns: Returns a end transaction subscription.

See also: BeginTransaction, EndTransaction(string)

Implements SiliconStudio.ActionStack.ITransactionalActionStack.

Definition at line 53 of file TransactionalActionStack.cs.

virtual void SiliconStudio.ActionStack.TransactionalActionStack.BeginTransaction ( )

virtual

Begins a transaction. IActionItem added after a call to BeginTransaction are stored in a temporary transaction stack, until a call to EndTransaction(string), CancelTransaction, or DiscardTransaction is done.

Implements SiliconStudio.ActionStack.ITransactionalActionStack.

Definition at line 87 of file TransactionalActionStack.cs.

virtual void SiliconStudio.ActionStack.TransactionalActionStack.CancelTransaction ( )

virtual

Cancels a transaction started with BeginTransaction. Every action from the cancelled transaction will be undone. This method will undo every action item of the transaction and then discard them.

Implements SiliconStudio.ActionStack.ITransactionalActionStack.

Definition at line 110 of file TransactionalActionStack.cs.

virtual void SiliconStudio.ActionStack.TransactionalActionStack.DiscardTransaction ( )

virtual

Discard a transaction started with BeginTransaction. This method will ends the transaction and discard every action item it contains.

Implements SiliconStudio.ActionStack.ITransactionalActionStack.

Definition at line 121 of file TransactionalActionStack.cs.

void SiliconStudio.ActionStack.TransactionalActionStack.EndTransaction ( string name )

Ends a transaction started with BeginTransaction.

Parameters

displayName

Once the transaction is ended, an aggregate action is created with all action items that were added during the transaction. This aggregate is added to the action stack.

Implements SiliconStudio.ActionStack.ITransactionalActionStack.

Definition at line 94 of file TransactionalActionStack.cs.

virtual void SiliconStudio.ActionStack.TransactionalActionStack.EndTransaction	(	string	name,
		Func< IReadOnlyCollection< IActionItem >, IActionItem >	aggregateActionItems
	)

virtual

Ends a transaction started with BeginTransaction.

Parameters

displayName
aggregateActionItems	A function that will aggregate an enumeration of action items into a single action item.

Once the transaction is ended, an aggregate action is created with all action items that were added during the transaction. This aggregate is added to the action stack.

Implements SiliconStudio.ActionStack.ITransactionalActionStack.

Definition at line 100 of file TransactionalActionStack.cs.

IReadOnlyCollection<IActionItem> SiliconStudio.ActionStack.TransactionalActionStack.GetCurrentTransactions ( )

Gets the action items in the current transaction.

Returns: The action items in the current transaction.

Definition at line 131 of file TransactionalActionStack.cs.

Member Data Documentation

readonly Stack<List<IActionItem> > SiliconStudio.ActionStack.TransactionalActionStack.TransactionStack = new Stack<List<IActionItem>>()

protected

The stack of transactions currently in progress.

Definition at line 24 of file TransactionalActionStack.cs.

The documentation for this class was generated from the following file:

D:/Projects/Bitbucket Hosting/DoxygenFilesAndSources/Paradox v1.0.0 beta06/sources/common/presentation/SiliconStudio.ActionStack/TransactionalActionStack.cs

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
